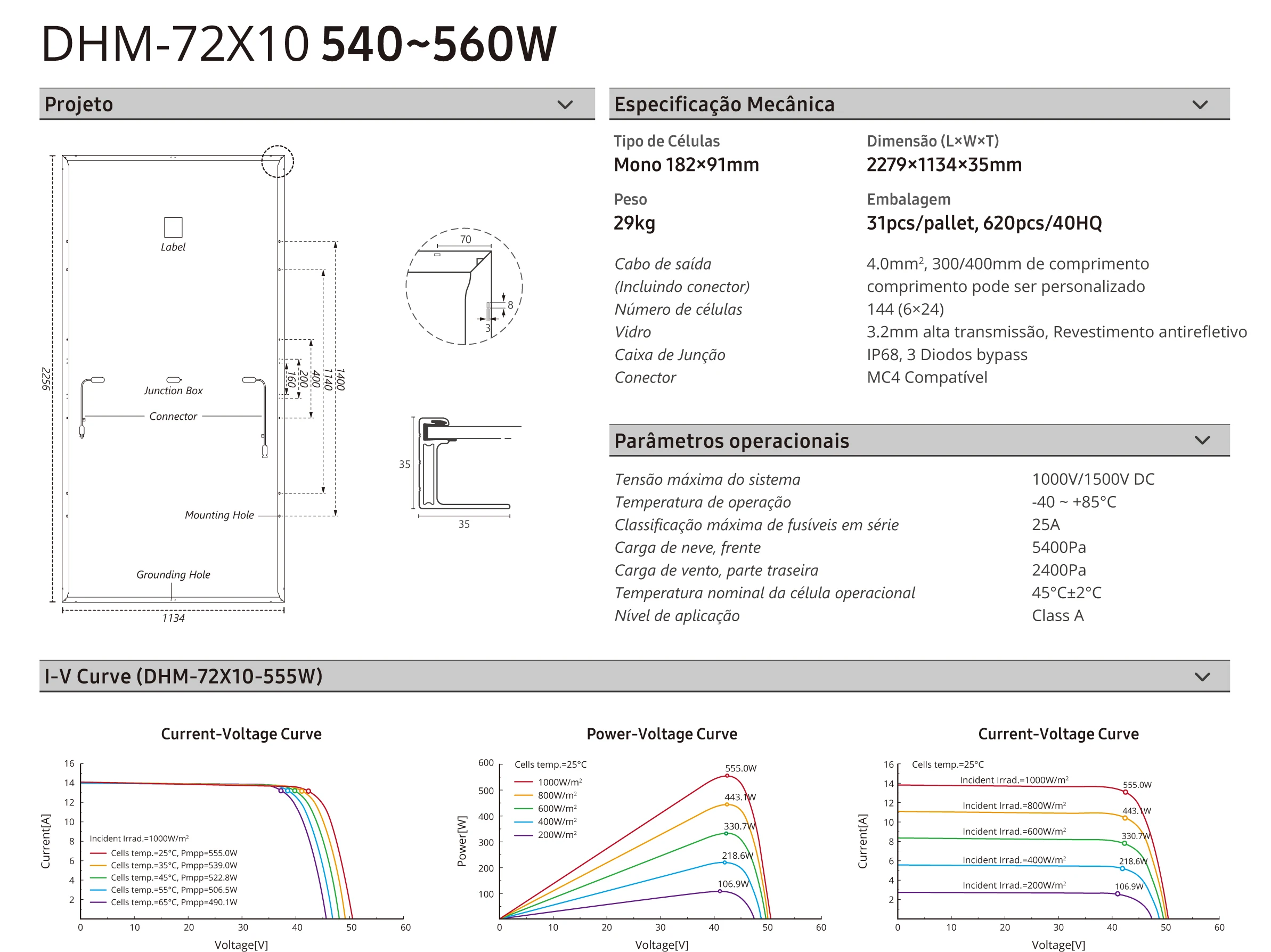

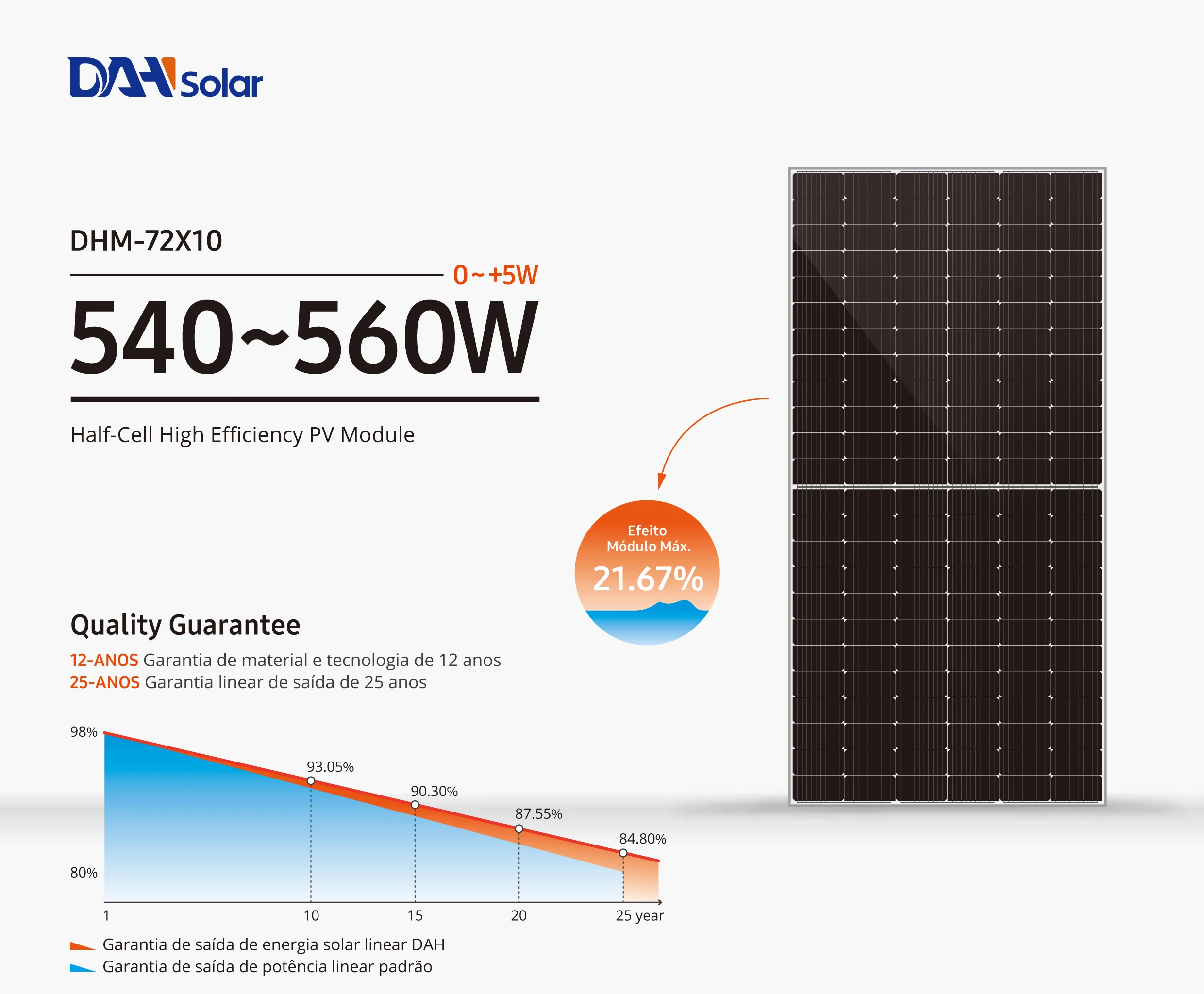

Maximum Power(Pmax)
|
540W
|
545W
|
550W
|
|
Open-circuit Voltage (Voc)
|
49.8V
|
50V
|
50.2V
|
|
Maximum Power Voltage(Vmp)
|
42V
|
42.2V
|
42.4V
|
|
Short-circuit Current (Isc)
|
13.66A
|
13.72A
|
13.78A
|
|
Maximum Power Current (Imp)
|
12.86A
|
12.91A
|
12.97A
|
|
Solar Panel Efficiency
|
21.13%
|
21.32%
|
21.52%
|
|
Power Tolerance
|
0~+5W
|
||
|
Standard Test Environment
|
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5
|
|
Maximum Power(Pmax)
|
555W
|
560W
|
|
Open-circuit Voltage (Voc)
|
50.4V
|
50.6V
|
|
Maximum Power Voltage(Vmp)
|
42.6V
|
42.8V
|
|
Short-circuit Current (Isc)
|
13.42A
|
13.90A
|
|
Maximum Power Current (Imp)
|
13.03A
|
13.08A
|
|
Solar Panel Efficiency
|
21.48%
|
21.67%
|
|
Power Tolerance
|
0~+5W
|
|
|
Standard Test Environment
|
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5
|

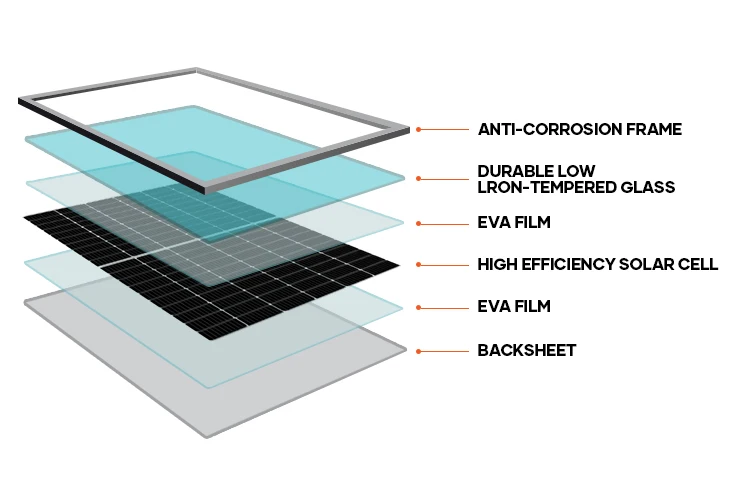

* High-transmittance and low reflection
* Inspection:GB15763.2-2005.ISO9050
* High solar transmittance
* High mechanical strength
* High flatness
Solar Panel Cell
* High output-power: conversation efficiency is 18%-22%
* High shunt-resistance: adapt the several environmental conditions.
* Bypass diode minimizes the power drop by shade
* Excellent low light effect
* Low breakage rate
Frame
* Aluminium extrusion profile with prompt delivery
* Available in customized surface finish
* Excellent material for smooth and subtle edges
* Extrusion for construction and other industrial purposes
* Thickness variable according special request
Junction Box
* High current and voltage carrying capacity
* Simple, quick and safe effective field assembly
* IP 68 it can be used in the outdoor iron environment
* Expansion connector are available for future requirement
* Double permanent connection are adapted for all of the connecting.
Covers 58,000 sqm and has 350 employees. DAH solar is a national high-tech enterprise specializing in R & D and manufacturing of solar modules, have own engineer team for complete set solar system design for residential and commercial projects.
