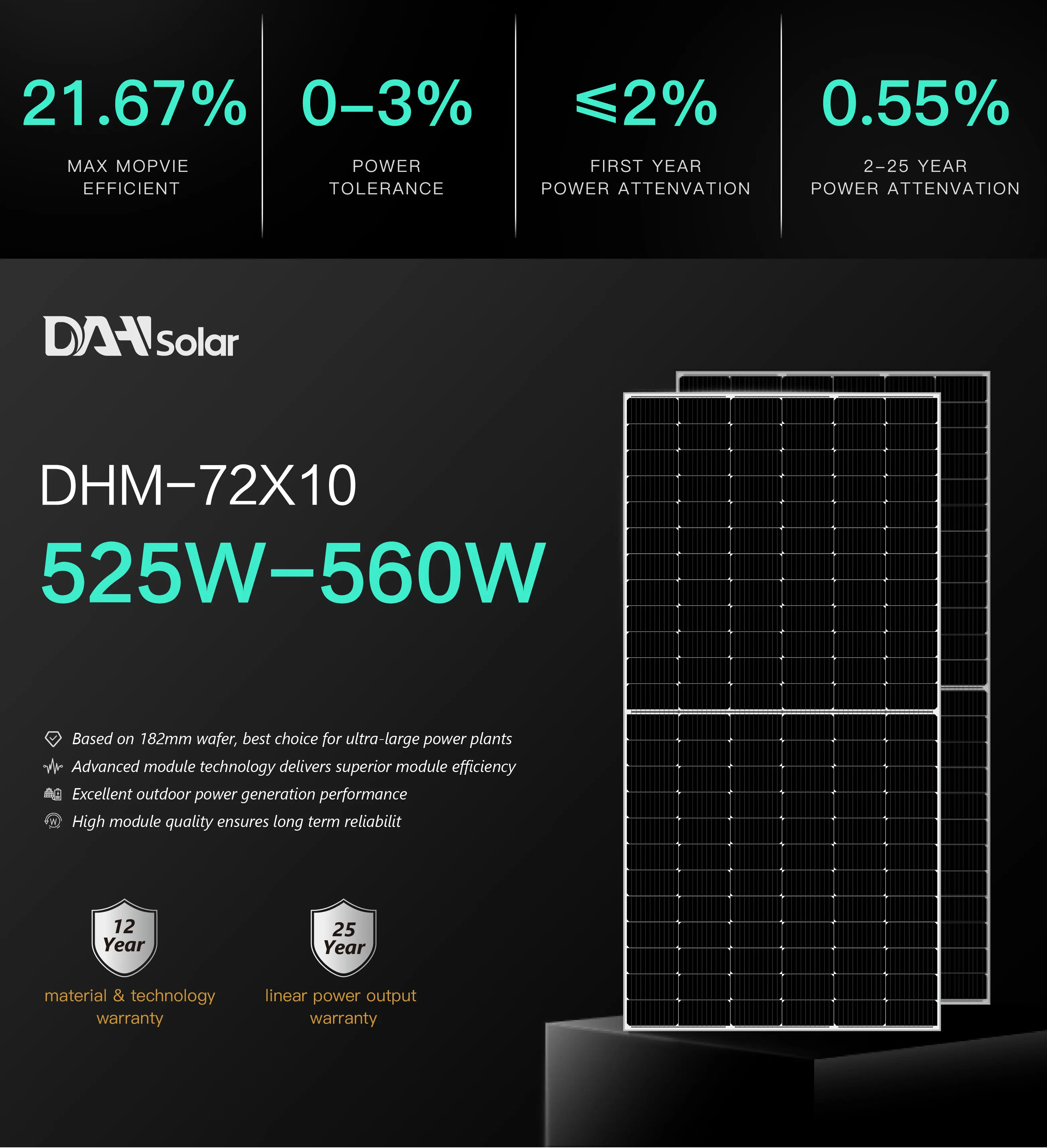

Maximum Power(Pmax)
|
525W
|
530W
|
535W
|
540W
|
|
Open-circuit Voltage (Voc)
|
49.2V
|
49.4V
|
49.6V
|
49.8V
|
|
Maximum Power Voltage(Vmp)
|
41.4V
|
41.6V
|
41.8V
|
42V
|
|
Short-circuit Current (Isc)
|
13.48A
|
13.54A
|
13.60A
|
13.66A
|
|
Maximum Power Current (Imp)
|
12.68A
|
12.74A
|
12.80A
|
12.86A
|
|
Solar Panel Efficiency
|
20.31%
|
20.51%
|
20.70%
|
20.89%
|
|
Power Tolerance
|
0~+5W
|
|
||
|
Standard Test Environment
|
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5
|
|
|
Maximum Power(Pmax)
|
545W
|
550W
|
555W
|
560W
|
|
Open-circuit Voltage (Voc)
|
50V
|
50.0V
|
50.4
|
50.6V
|
|
Maximum Power Voltage(Vmp)
|
42.2V
|
42.4V
|
42.6
|
42.8V
|
|
Short-circuit Current (Isc)
|
13.72A
|
13.78A
|
13.84A
|
13.90A
|
|
Maximum Power Current (Imp)
|
12.91A
|
12.97A
|
13.03A
|
13.08A
|
|
Solar Panel Efficiency
|
21.09%
|
21.28%
|
21.48%
|
21.67%
|
|
Power Tolerance
|
0~+5W
|
|||
|
Standard Test Environment
|
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5
|
Our in-house engineering team provides complete solar system design for residential and commercial projects.

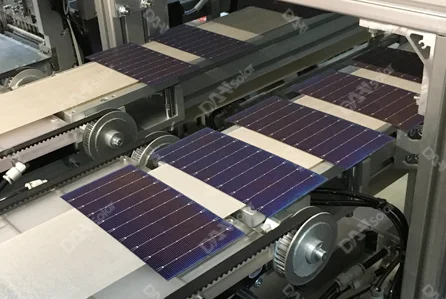

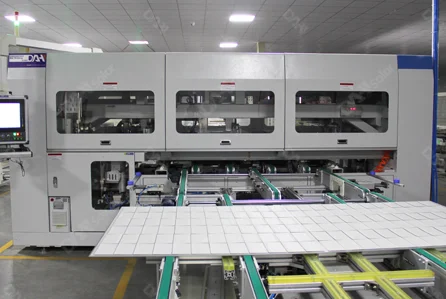

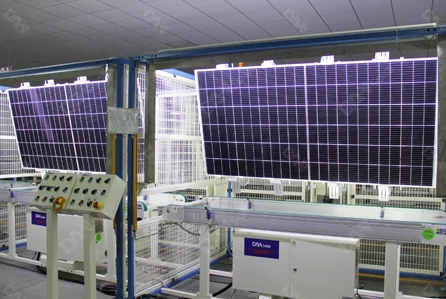

High precision, high efficiency, low defect rate
