EV Fast Charging Station 60Kw 120Kw DC  with CCS Chademo and AC Type-2 - Three Connector Support         GRASEN AC & DC integration combo lltra fast charger,... More..


In Stock 1

Regular price $75,340.76
Title


Print
EV Fast Charging Station 60Kw 120Kw DC  with CCS Chademo and AC Type-2 -
Three Connector Support

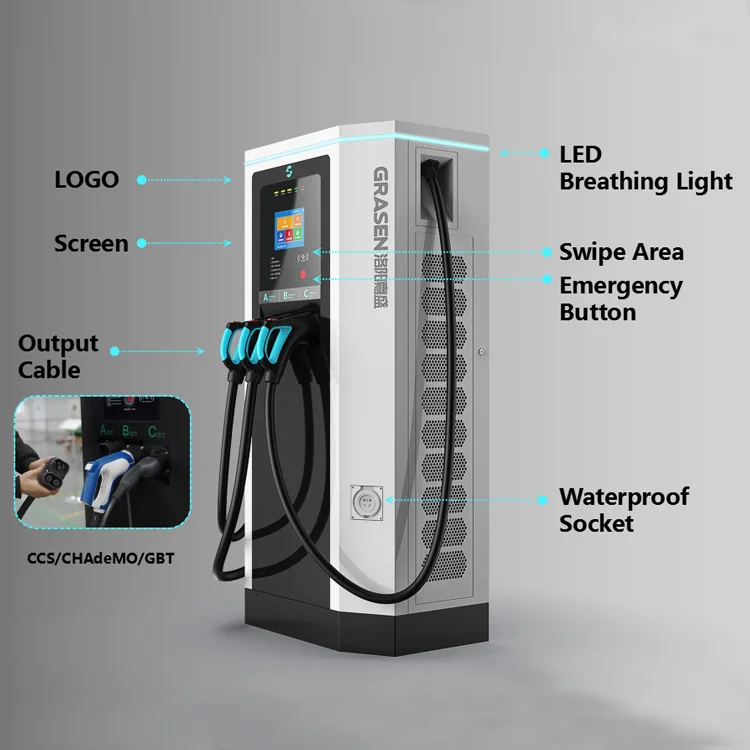

GRASEN AC & DC integration combo lltra fast charger, flexible multi-protocol design with CCS, CHAdeMO and AC Type 2.
Boosts the EV battery to 80% within 30 minutes based on battery pack size.
Fast AC DC EV Charging Station
* Output power - Triple plugs
82KW (30KW + 30KW + 22KW)
142KW (60KW + 60KW + 22KW)
* Connectors - CCS1, CCS2, Chademo, GB/T, Type 2
* Networking way: 4G, Ethernet
* OCPP 1.6 /2.0 supported
* TUV CE certificates

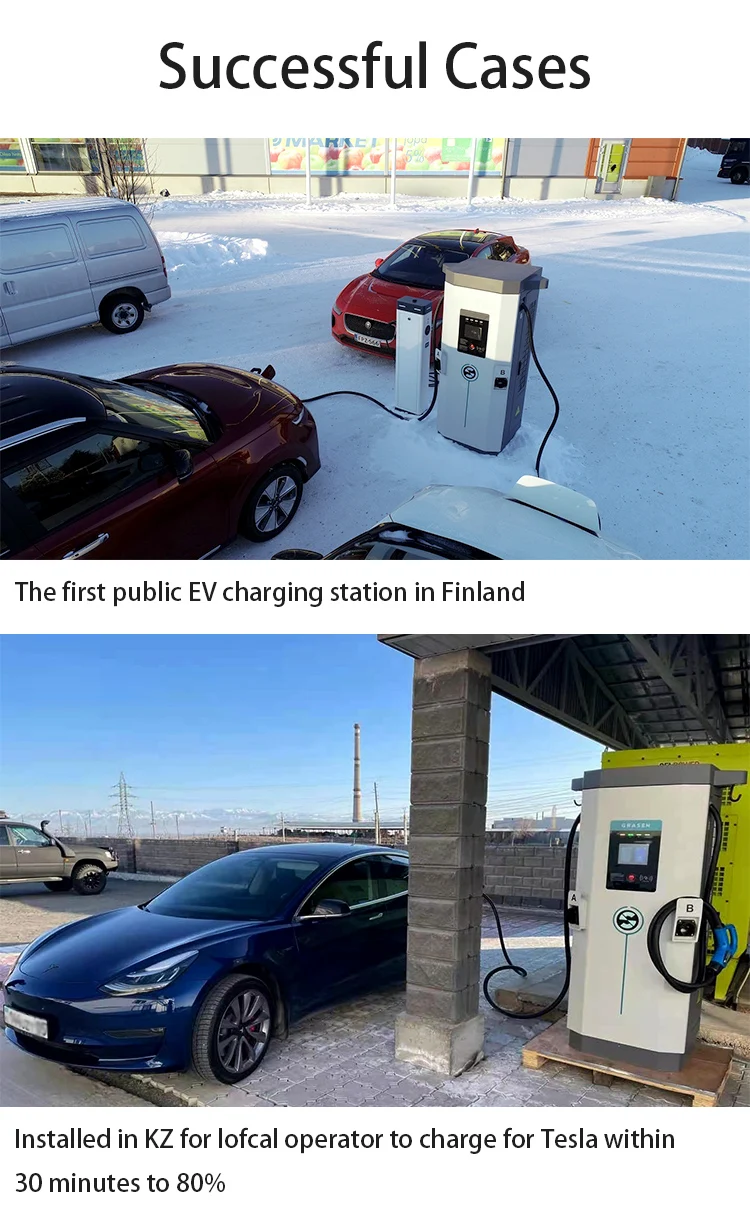

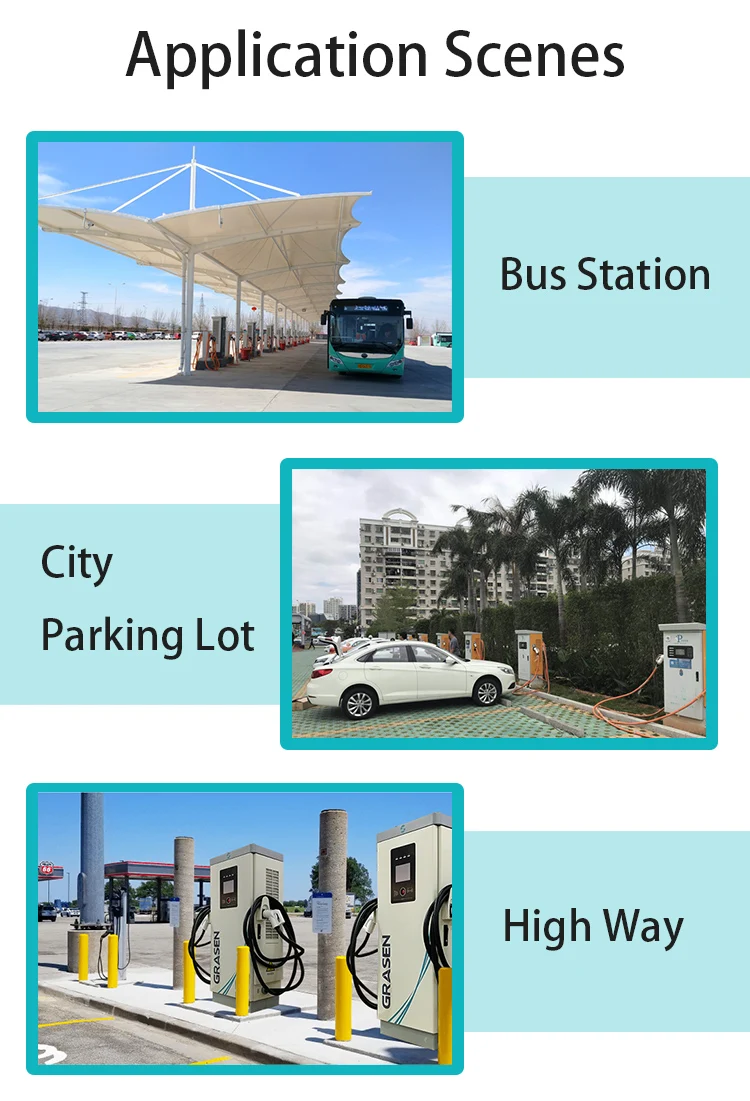

* Suitable for public parking lot, bus station, gas station, freeway service area, etc.

Product Brief Introduction
Product
60Kw 120Kw DC Fast EV Charger With CCS Chademo And AC Type-2 Three Connectors Support Ocpp EV Fast Charging Station
Description
82kW DC Charging Pile
142kW DC Charging Pile
Output Power
30KW + 30KW + 22KW
60KW + 60KW + 22KW
Electrical Index
Input Rating
3-phase 400V±15% AC
Working frequency
45~65Hz
Output voltage
150~1000V DC; 3-phase 400V±15% AC
Output current
Max 200A
Max 400A
Power factor
0.99
Efficiency
≥95%
Function Design
Communication interface
4G, Ethernet
Screen size
8"

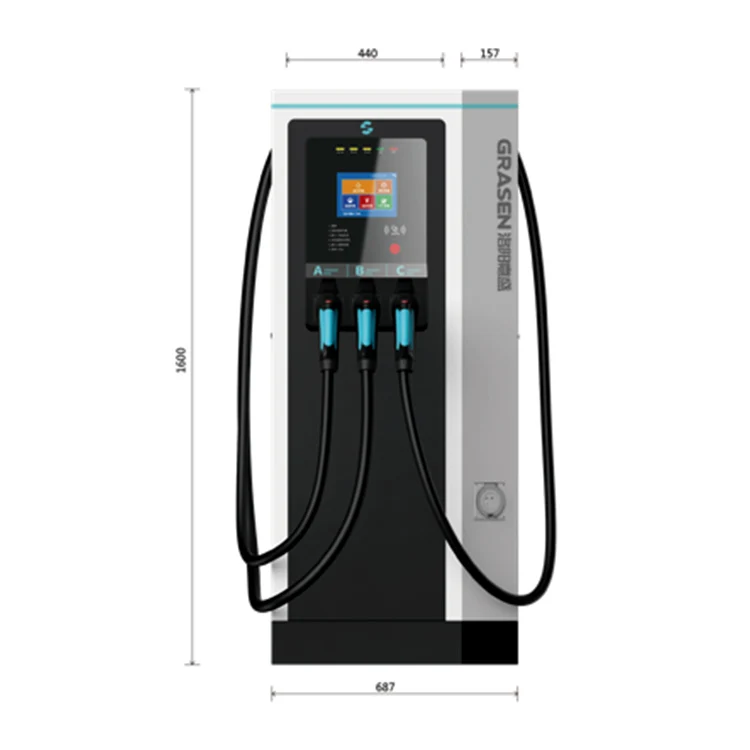

Appearance and structure
Charging cable length
5m or 7m
Mounting type
Floor-mounted type
Environment Temperature
IP class
IP55
Cooling method
Air cooling
Working temperature
-30℃~+55℃
Storage temperature
-40℃~+70℃
Safety Design
Altitude
Up to 6000 feet (≤2000 m)
Protection function
Over voltage over current
Certificate
Certificate No.
50347817 001_Certificate/AN504631360001
Reference Standard
DIN70121/ISO15118/IEC61851/SAEJ1772
Certificate
CE certified by TUV
User Interface & Control
Support Language
English, Spanish, or other languages required
Push Buttons
Emergency stop
User Authentication
RFID card reader, user name & password, mobile No. & pin code

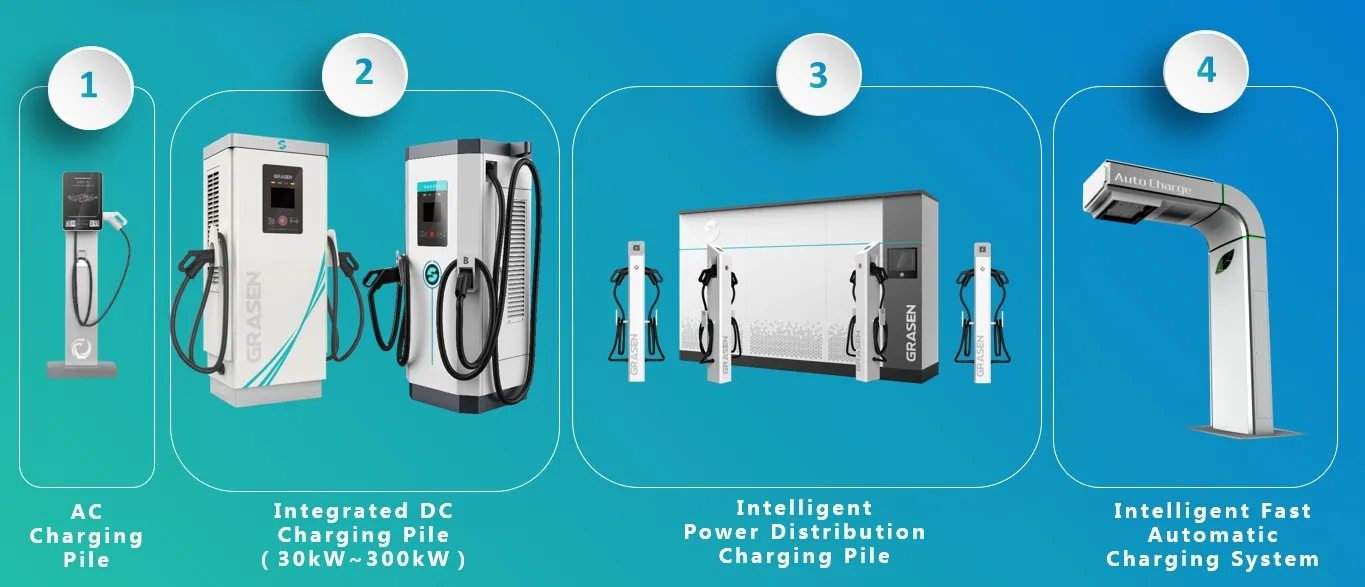

Category of our EV charging stations

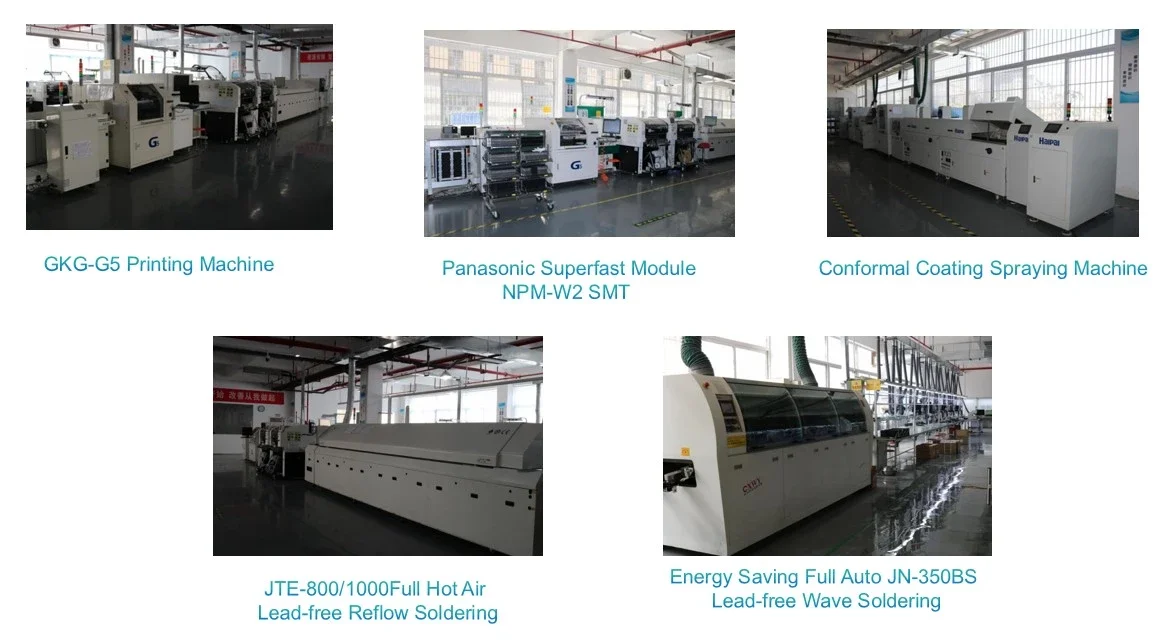

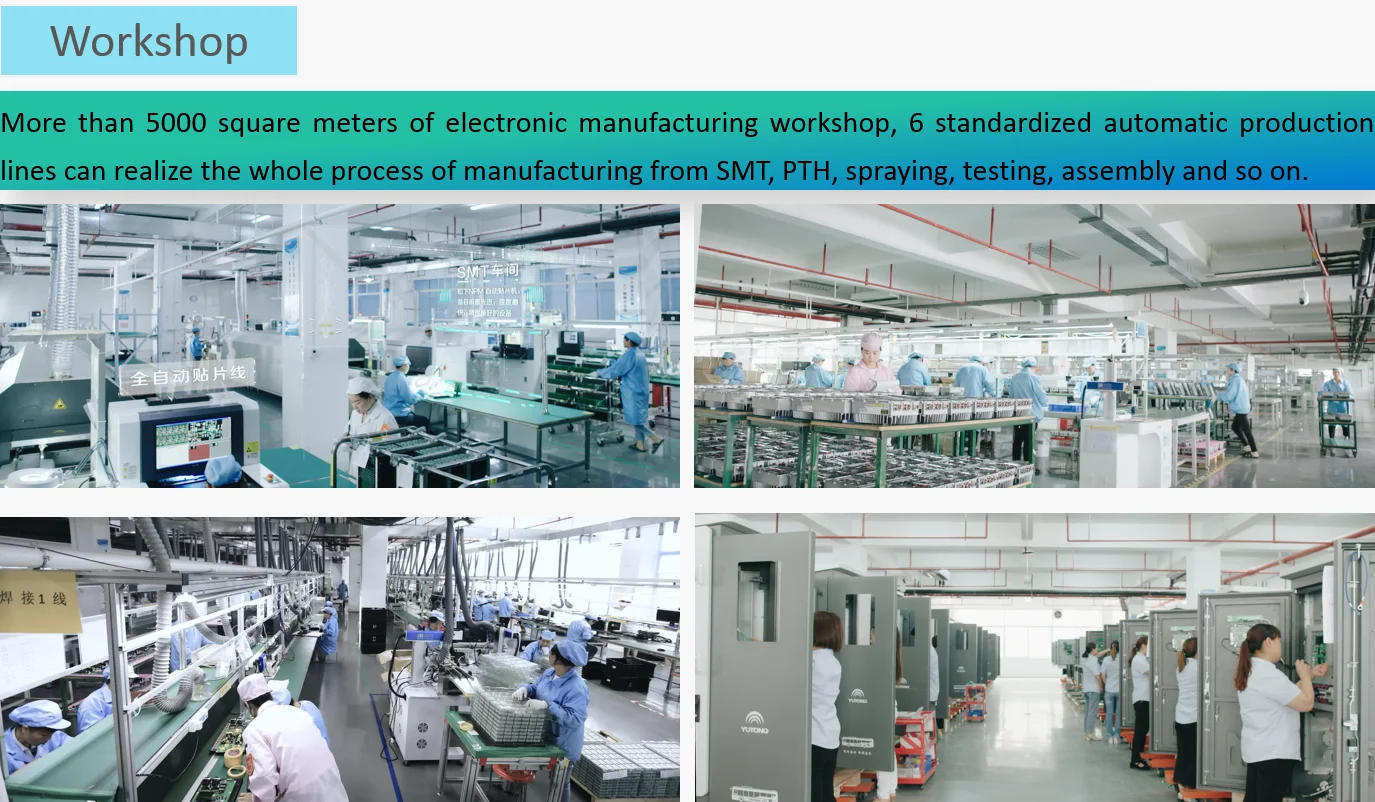

Factory equipment
After Sales Service
Packing&Shipping
