Roofing Reserve Solar Panels 182mm monocrystalline 550w 600w 605w photovoltaic panel Product Description Maximum Power(Pmax) 520W 525W 530W Open-circuit Voltage (Voc) 49.0V 49.2V 49.4V Maximum Power Voltage(Vmp) 41.2V 41.4V 41.6V... More..


Special Order

Normaler Preis $1,045.83


Drucken

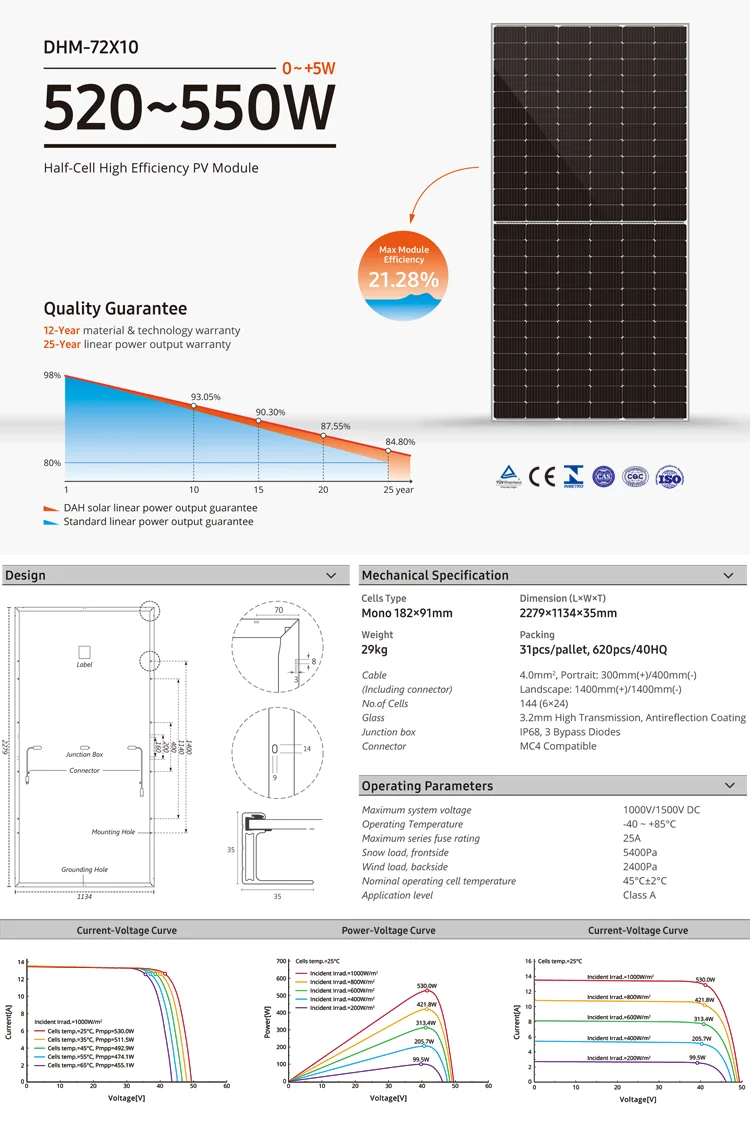

Roofing Reserve Solar Panels 182mm monocrystalline 550w 600w 605w photovoltaic panel
Product Description
Maximum Power(Pmax)
520W
525W
530W
Open-circuit Voltage (Voc)
49.0V
49.2V
49.4V
Maximum Power Voltage(Vmp)
41.2V
41.4V
41.6V
Short-circuit Current (Isc)
13.42A
13.48A
13.54A
Maximum Power Current (Imp)
12.62A
12.68A
12.74A
Solar Panel Efficiency
20.12%
20.31%
20.51%
Power Tolerance
0~+5W
Standard Test Environment
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5
Maximum Power(Pmax)
535W
540W
545W
550W
Open-circuit Voltage (Voc)
49.6V
49.8V
50.0V
50.2V
Maximum Power Voltage(Vmp)
41.8V
42.0V
42.2V
42.4V
Short-circuit Current (Isc)
13.60A
13.66A
13.72A
13.78A
Maximum Power Current (Imp)
12.80A
12.86A
12.91A
12.97A
Solar Panel Efficiency
20.70%
20.89%
21.09%
21.28%
Power Tolerance
0~+5W
Standard Test Environment
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5
Automatic Production

S olar cell Welding
Use automatic welding machine to connect solar cells in series

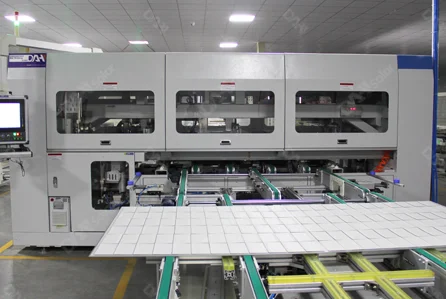

Automatic typesetting machine
After setting up the program according to the requirements of the process drawings, the typesetting machine will automatically typeset the battery string. High precision, high efficiency, low defect rate

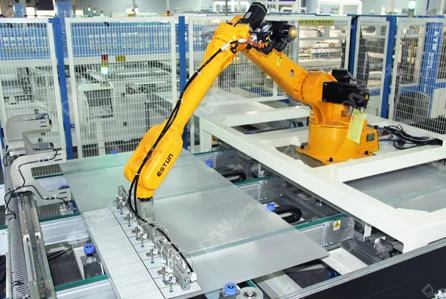

Automatic welding
Automatic laying of EVA, backing, automatic cutting of excess backing material 100% automation of the entire production process

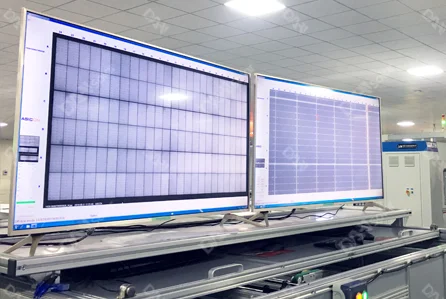

EL Testing
Use the mirror to inspect the appearance of the solar modules before lamination, and repair them if they are defective;

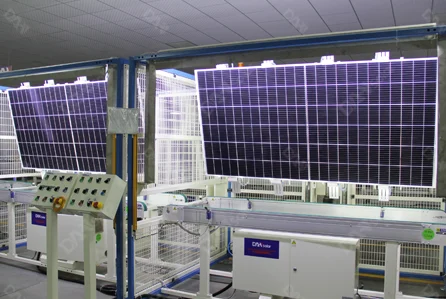

Visual Inspection
Through the turning machine, completely inspect the solar panel after lamination, and record the defects and feedback to the previous process

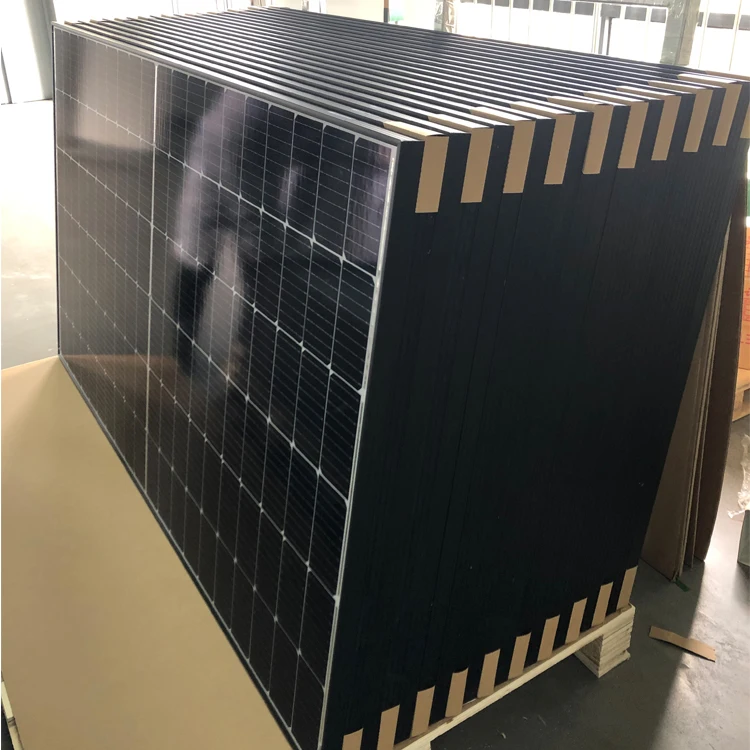

Packing & Delivery

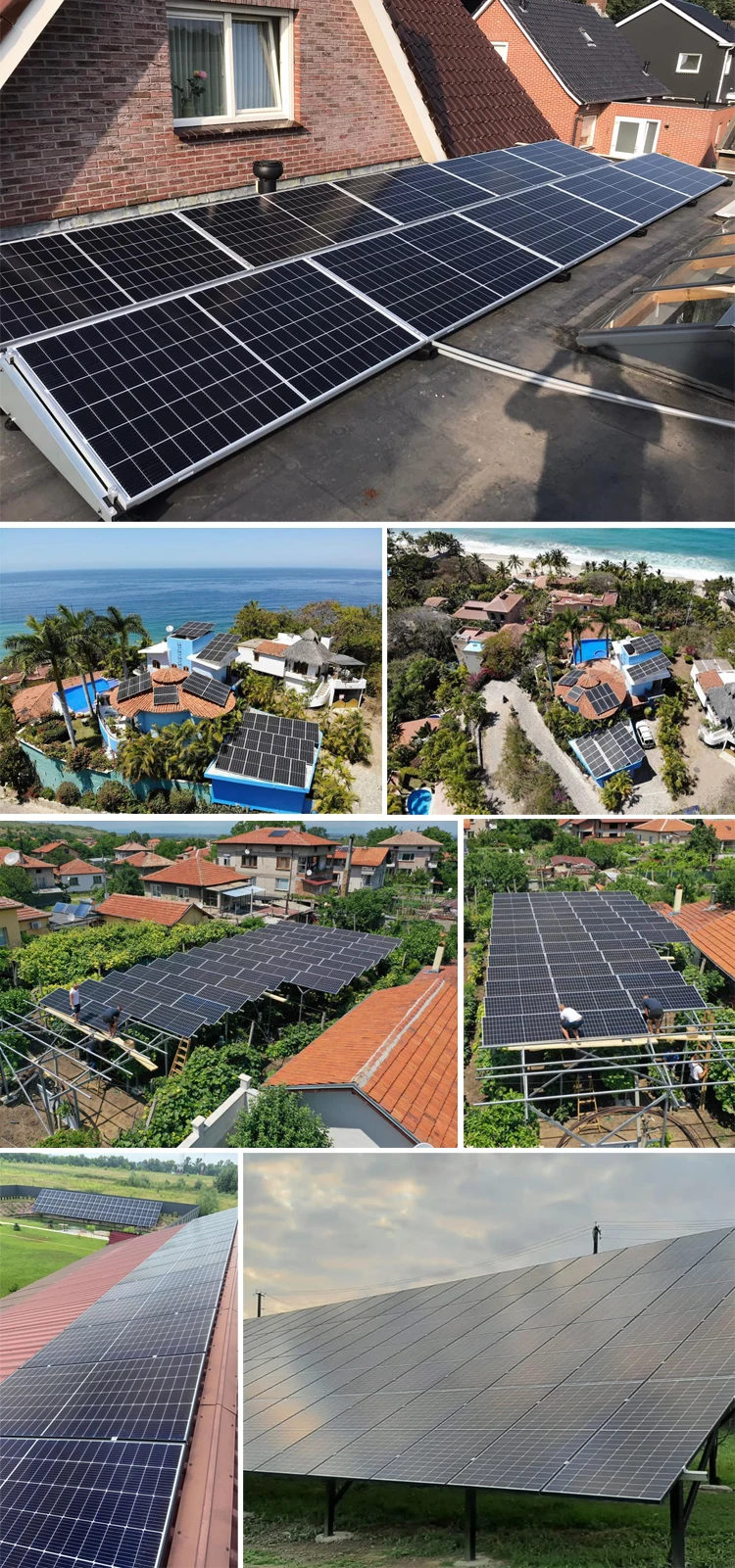

Solar Projects
Service Team
