Tesla Power Wall off Grid Hybrid Inverter Solar ESS Powerwall Home Lifepo4 Lithium Battery 48V 200Ah 10Kwh

Features:

1. Iron Phosphate-lithium power battery
2. Long warranty period:3years
3. Higher energy density,smaller volumn for household.
4. Support Connected in parallel mode for expansion.
5. Photovoltaic system:this battery pack is designed for household photovoltaic systems.
6. Battery management system(BMS):the battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
7. Expandability: this battery pack can be easily expanded by adding expansion battery packs in parallel connection.

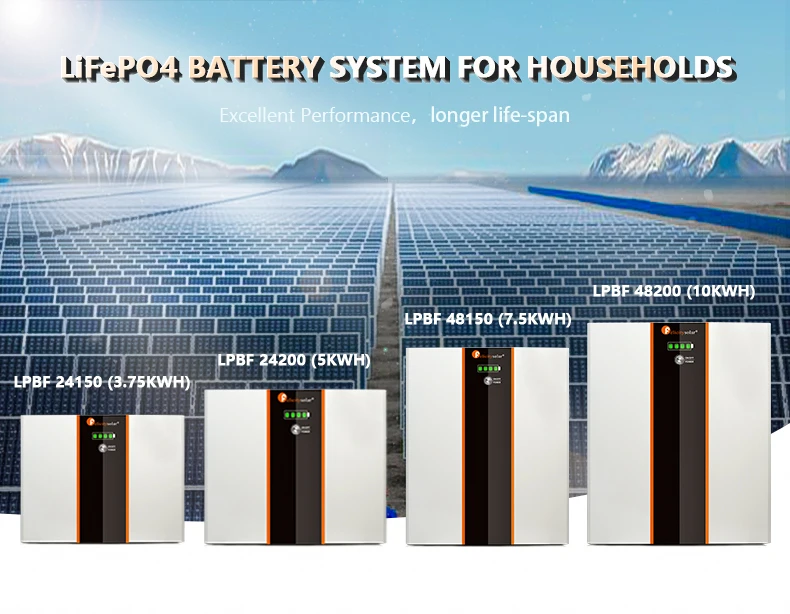

model
LPBF24150
LPBF24200
LPBF48150
LPBF48200
capacity
3.75KWH
5KWH
7.5KWH
10KWH
Voltage
24V
24V
48V
48V
Rated Voltage
25.6V
25.6V
51.2V
51.2V
Charge Voltage
28.8V
28.8V
57.6V
57.6V
Discharge Voltage Range
24-28.8V
24-28.8V
48-57.6V
48-57.6V
MAX.Charge&Discharge Current
120A
120A
120A
120A
DOD
0.9
0.9
0.9
0.9
Modeles Connection
1~6in parallel
1-6 in parallel
1-6 in parallel
Communication
CAN & RS485
CAN & RS485
CAN & RS485
CAN & RS485
Ingress protection
IP21
IP21
IP21
IP21
Cycle Life
>6000, @25°C
>6000, @25°C
>6000, @25°C
>6000, @25°C
Working Temperature Range
-10-50°C
-10-50°C
-10-50°C
-10-50°C
Net Weight(kg)
37.3KG
44KG
68KG
75KG
Gross Weight(kg)
40KG
51KG
78KG
83KG
Dimension(MM)
485*370*240MM
485*370*240MM
485*573*240MM
485*573*240MM
Introduction to parallel connection:
One group of LPBF24150 can be stacked up to 4 layers,and up to 6 in parallel connection
One group of LPBF48150 can be stacked up to 2 layers,and up to 6 in parallel connection

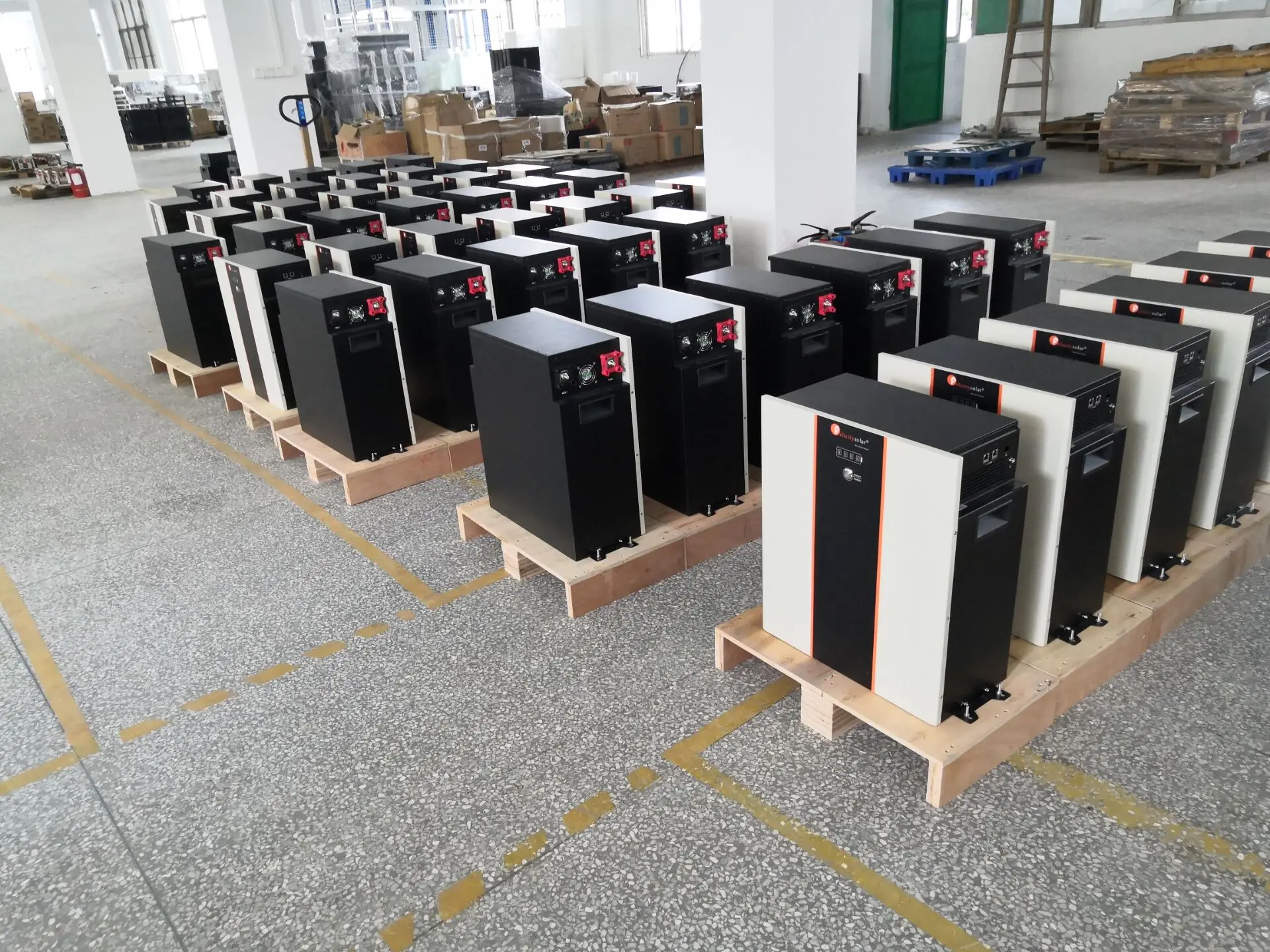

PRODUCTION LINE:
Used in Utility power or solar system
Related Products

LPBF Series Lithium Ion Batteries

24/48V 3.75KWH~10KWH Battery

LPBG Series Lithium Ion Batteries

24/48V 5KWH~12.5KWH Battery

LPBF Series 12V Batteries

12V 150Ah/200Ah Lithium Ion Battery

GEL Series 70Ah~250Ah Battery

12V 70AH~250AH Gel battery

Front terminal Series Battery

12V 100Ah~200Ah Battery

OPzV Series 200Ah~2500Ah battery

2V 200Ah~2500Ah Gel Battery

IVPL Series 2.5~7.5KVA Inverter

12V/24V/48V Pure sine wave Inverter
Communicate with our Mppt controller

IVPS/IVPM Series 5~10KVA Inverter

24V/48V Pure sine wave Inverter
Communicate with our Mppt controller

IVCP/IVCM Series 1~5KVA Inverter

12V/24V/48V Pure sine wave Inverter
Built-in PWM/MPPT Controller

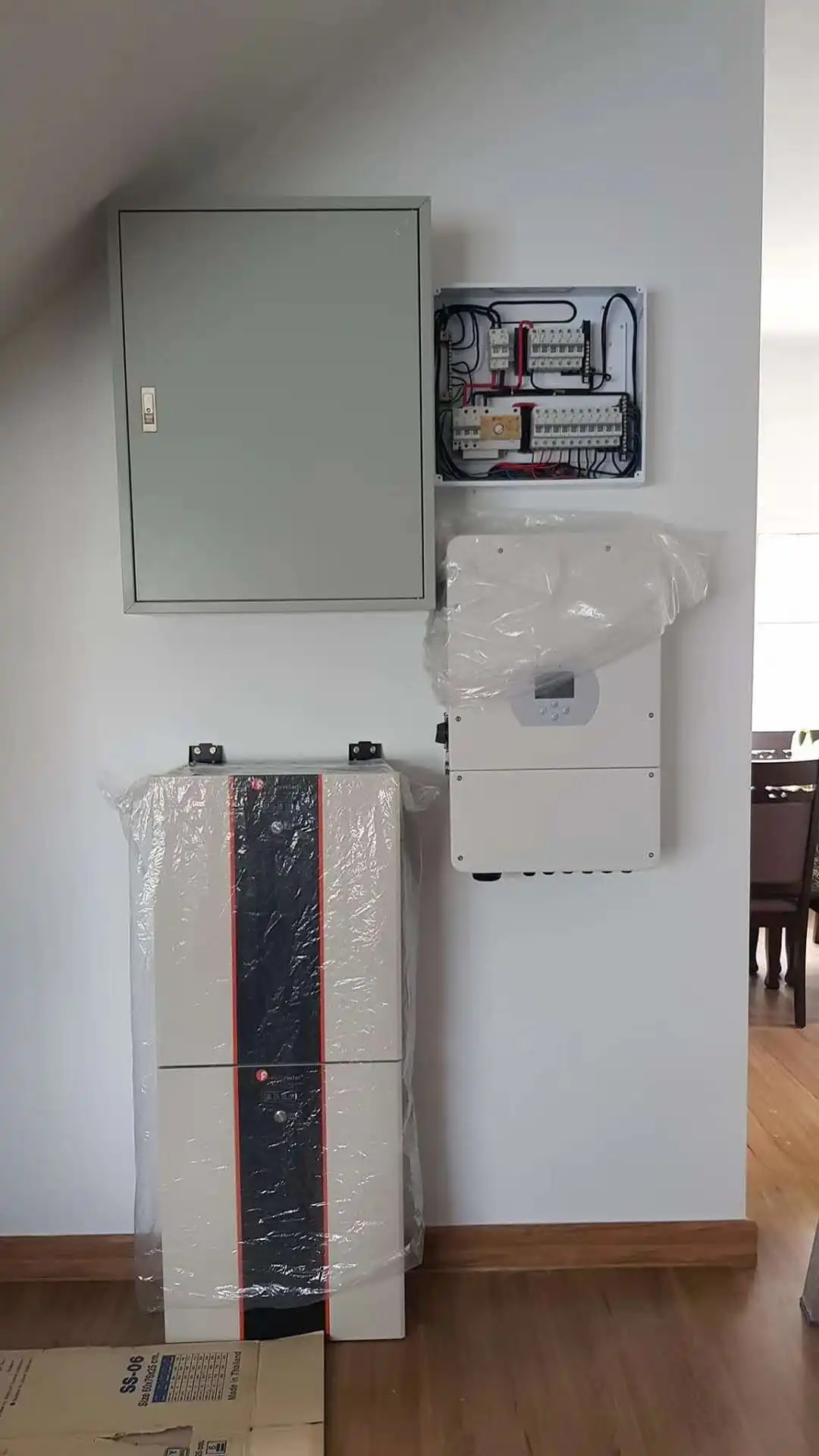

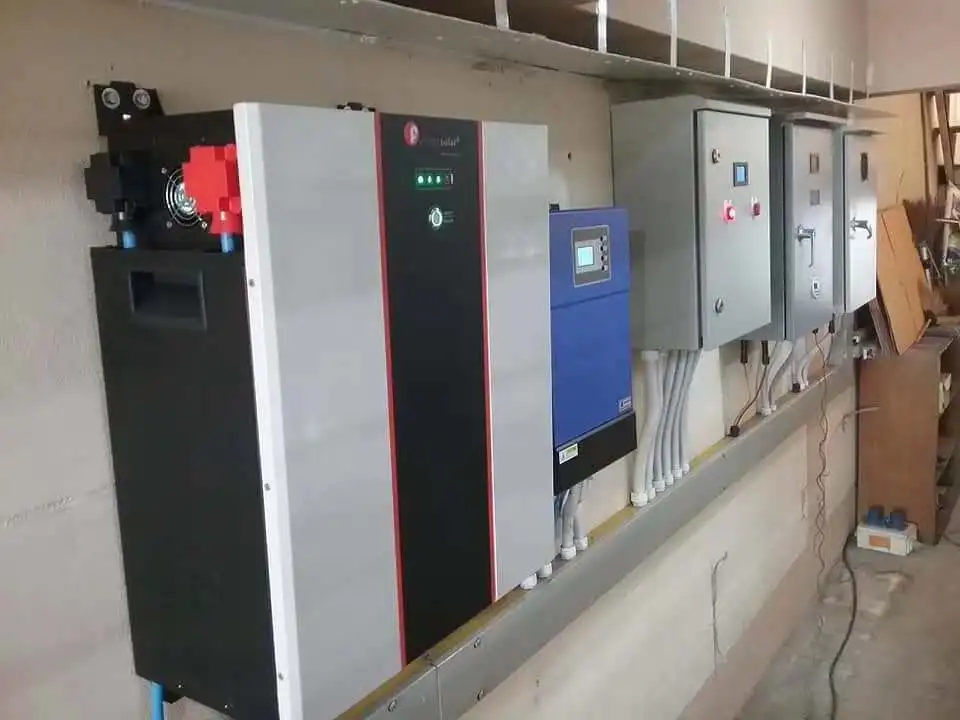

Product Applications

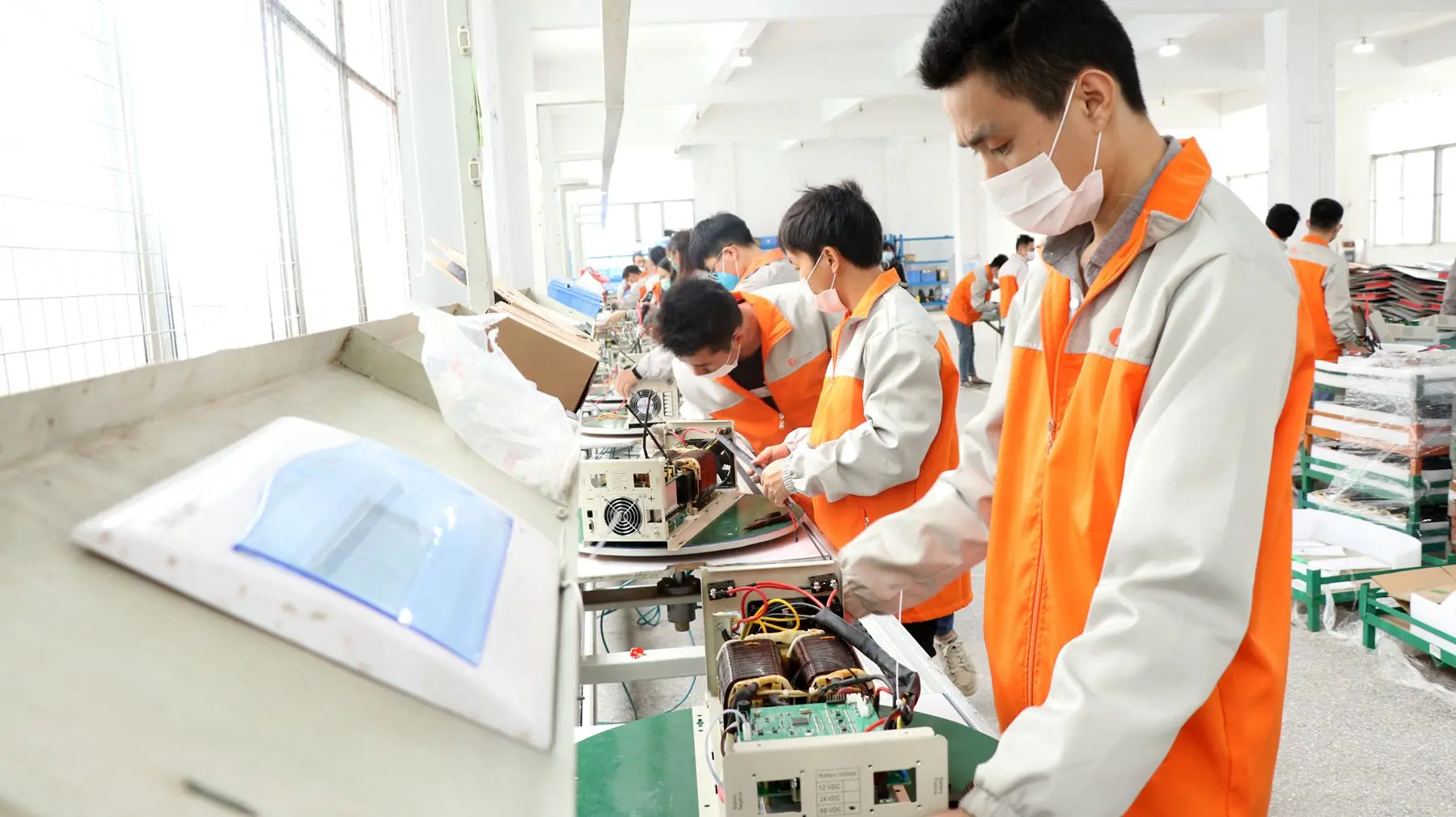

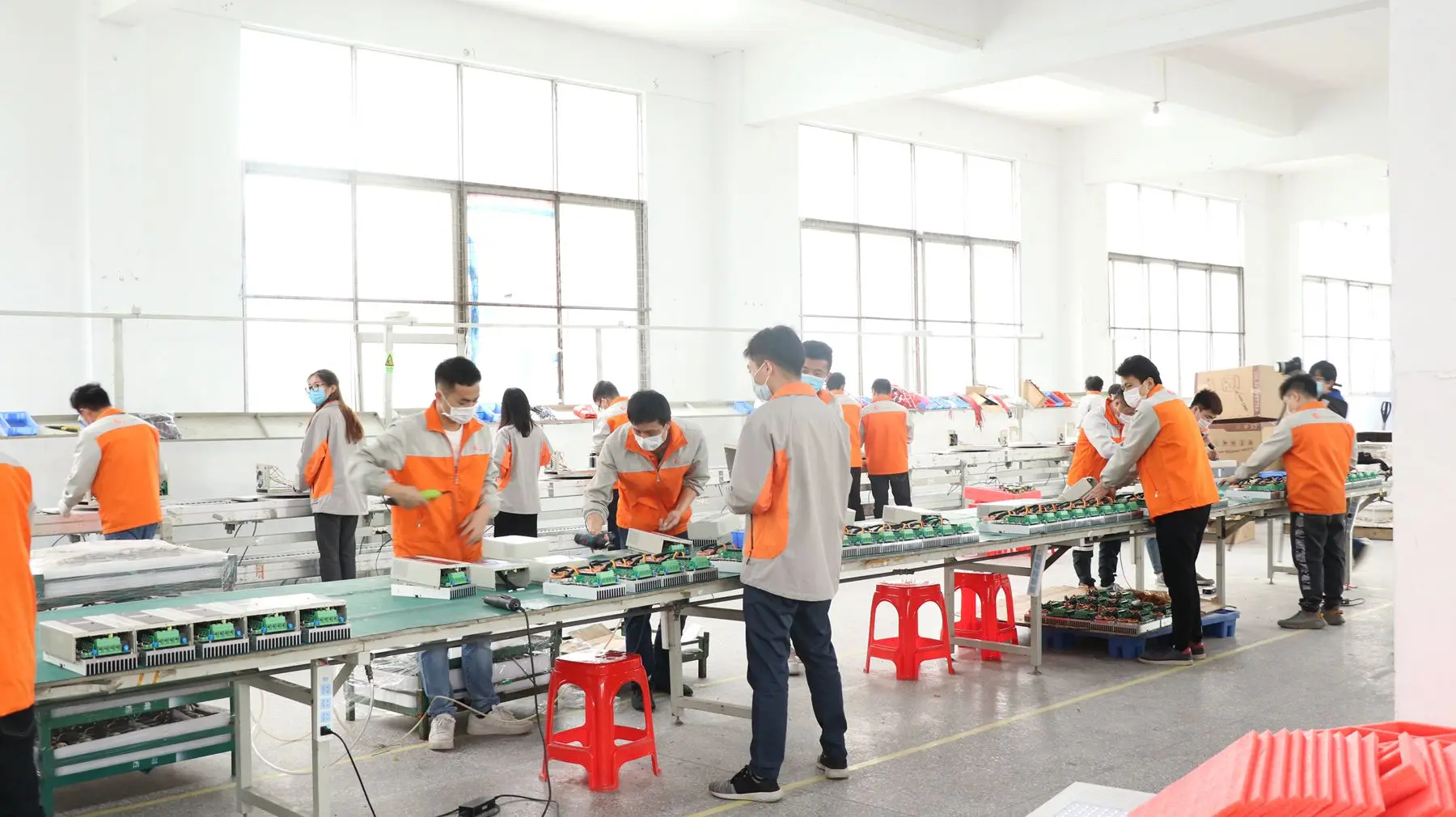

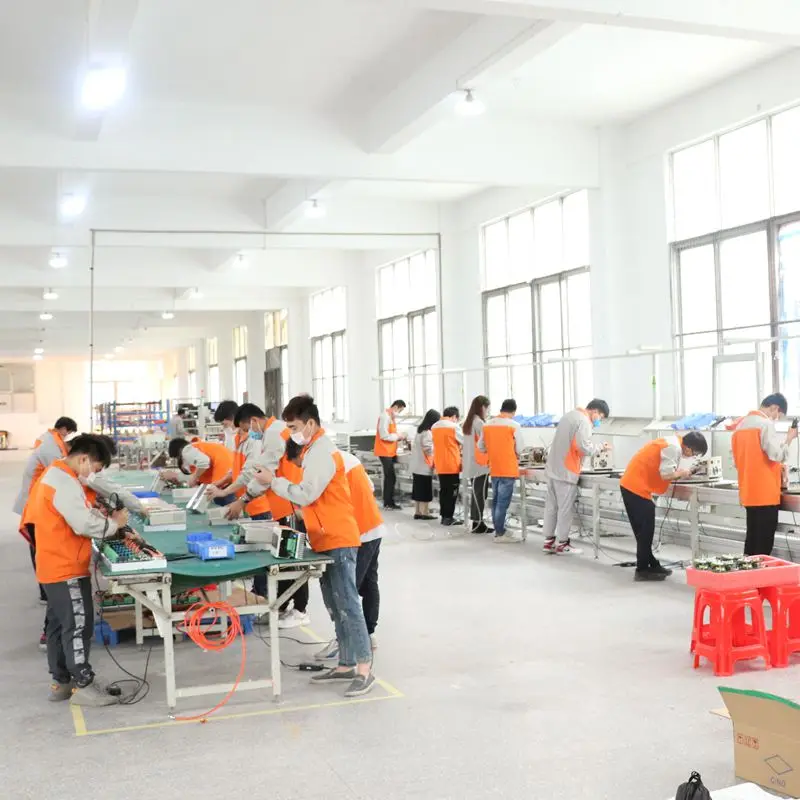

Pruoduction Line

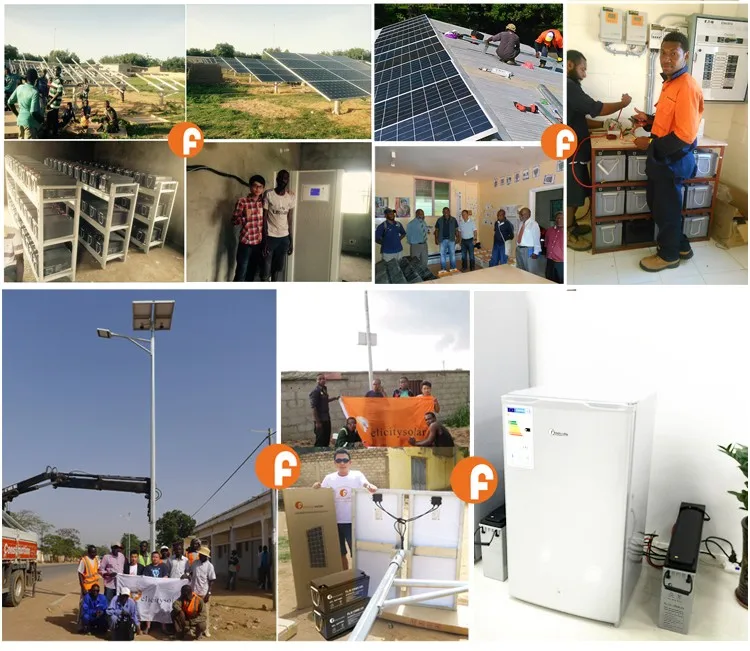

Exhibition


Our Company

Felicitysolar was found in 2007 possessed deep pockets and the professional ability of technology and had formed many modern solar
panel production lines, LED street light production lines and the testing systems for solar power and lighting.
Certifications

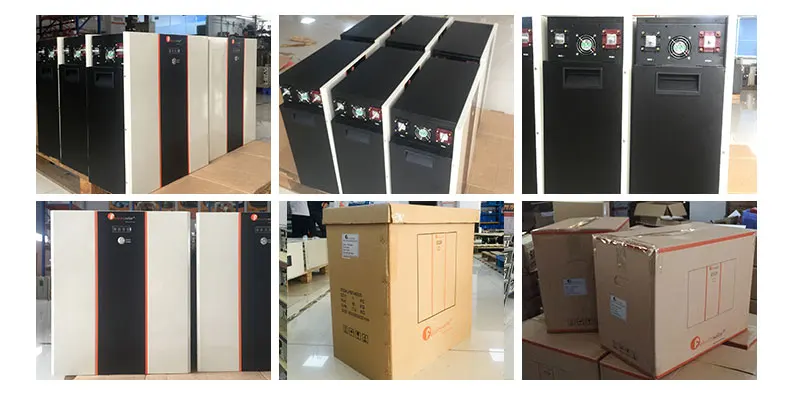

Packing&Delivery
FAQ
Q1:Is the battery BMS included?
A1:Yes.It's advanced BMS included and very safe to use.
Q2:How do you ship lithium battery?
A2:We can ship by Air and By sea.
Q3:Does the battery have overcharge and overdischarge protection?
A3:Yes.We use advanced BMS and it can protect the batteru well from overcharge and overdischarge.
